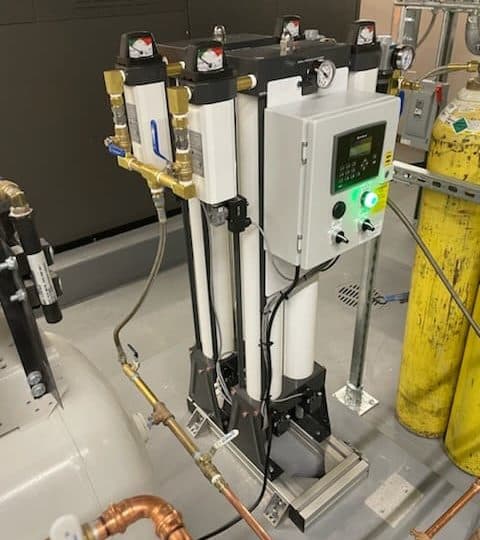

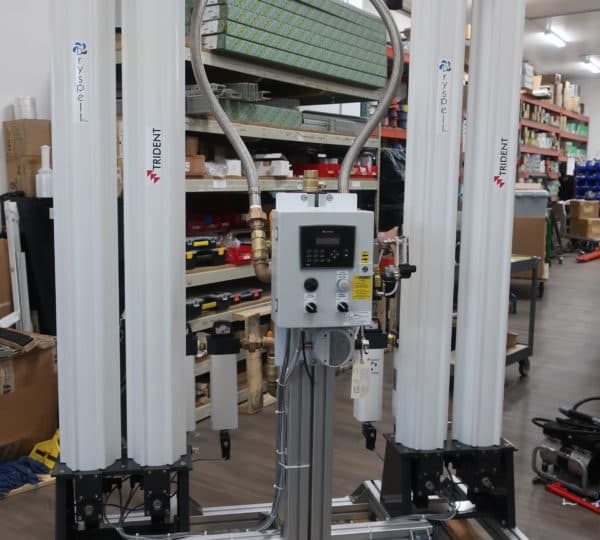

Duplex Medical Desiccant Dryer System
AT2D Series - Duplex Heatless Desiccant Dryer Package
The AT2D Series is the smallest duplex heatless desiccant dryer package in the market, available from 5 CFM to 375 CFM and in custom designs to suit any space.
Each bank has its own isolation valve, allowing service of one bank while the other continues treating compressed air, with CO and dew point read-out, field adjustable alarm setpoints, and dry contacts for remote monitoring.
Key Features
- Smallest size in the market
- From 5 CFM to 375 CFM
- Available in custom design to suit any space
- Dual heatless regenerative desiccant air dryer
- Compliance with NFPA99 or CSA
- Dual 0.01μ pre filters
- Dual 1μ after filters
- Dual pressure regulators with gauge, safety relief valves, isolation valve
- Isolation valve for each bank to allow service of one bank while treating air through the other
- NEMA 12 enclosure control panel
- CO and dew point read out
- Field adjustable CO and dew point alarm setpoints
- Red light indication of alarm condition with 90dB alarm buzzer
- Silence and reset alarm function
- Dry contact for remote monitoring of alarm
- Dew point-based purge control with field adjustable setting
- Dryer override function to allow offline dryer to operate for maintenance purposes
- Models without CO monitoring are available
Documentation
- AT2D Spec Sheet — request a copy
- AT2D Operating Manual — request a copy
AT2D Series Models
| Model | Rated Flow (CFM) | Size (IN) |
|---|---|---|
| AT2D-10-50-50 | 10 | 22x30x43 |
| AT2D-20-50-50 | 20 | 22x30x38 |
| AT2D-30-50-50 | 30 | 22x30x49 |
| AT2D-45-50-50 | 45 | 30x36x42 |
| AT2D-60-50-50 | 60 | 30x36x50 |
| AT2D-100-50-50 | 100 | 47x29x74 |
| AT2D-125-50-50 | 125 | 47x29x85 |
| AT2D-200-50-50 | 200 | 47x40x74 |
| AT2D-250-50-50 | 250 | 47x40x85 |
| AT2D-300-50-50 | 300 | – |
| AT2D-375-50-50 | 375 | – |
